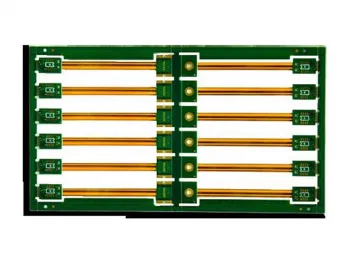

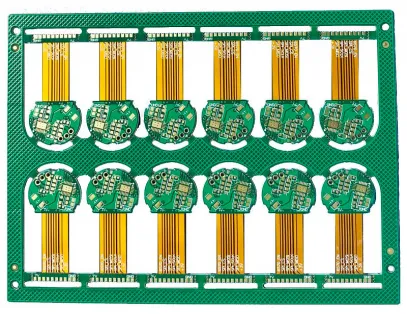

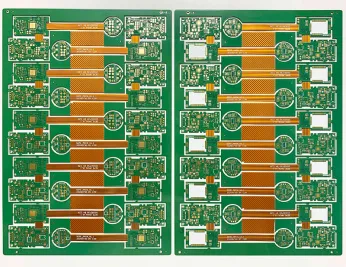

Rigid-flex PCB

With the deverlopment of the rigid PCB and flex PCB, rigid-flex PCB appeared. It combined the advantge of the FR4 PCB and flexiable PCBs, brought more space for the engineers.

As its name implies, rigid-flex PCB is procuded by pressing flexible circuit board and rigid circuit board, according to the requirements of the relevant process, formed a circuit board with FPC characteristics and PCB characteristics.

Rigid-flex PCB can be used in many areas such as mobile, car, medical care, military.

Inquire Now

Capacity

Category	Item	Technical Index
Base structure	Base material	PI, FR4, PET
	Layer number	1-8layer
	Max size	1420*400mm
	Min size	2.5*2.5mm
	Thickness	PI+FR4: 3 to 125mil
	Adhesive	(Acrylic Adhesive): 1/2mil(12.5um) to 3mil (760um)
	Min Drill diameter	0.05mm
Solder mask	PI PET	Covered in layers PI and PET film
Solder mask	Resist Oil	Solder Mask resist oil thickness:12-18um Color(Green, Black, Yellow, White)
Surface treatment		Immersion gold
		Immersion tin
		Immersion silver
		OSP
Tracks and holes	Min stiffener Holes	>0.2mm
	Min track width before compensation(mil)	1.5mil, tolerance +/-15%
	Min track space before compensation(mil)	1.5mil, tolerance +/-15%
Others	Impedance control tolerance	(impedance tolerance):+/-10%
